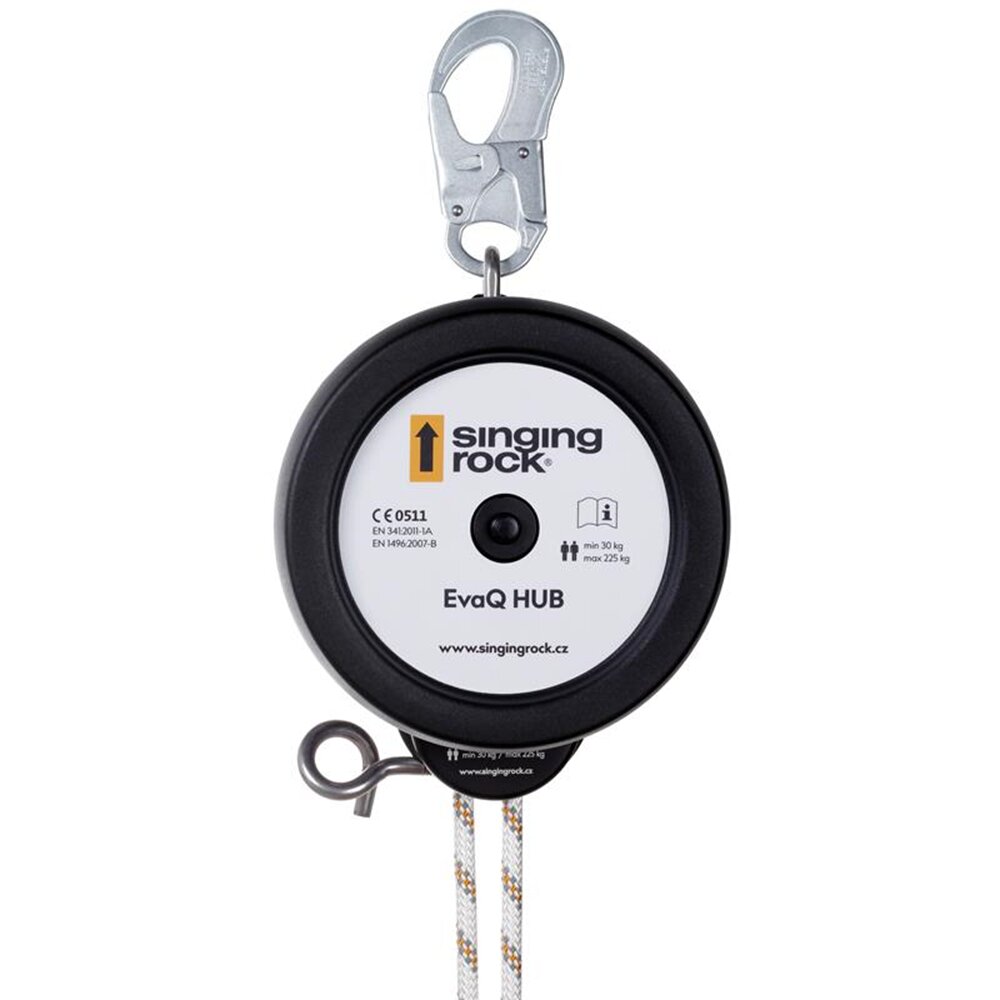

EvaQ Hub

Descender and rescue device with lifting function for height rescue by fire fighters, industrial climbers and others when exposed to a danger at great heights such as cable cars, outdoor parks, wind power plants or skyscrapers. Also suitable for quick and easy rescue and even for self-rescue of many threatened people.

Features

• • designed for a working load of 225 kg (2 persons)
• • automatic and redundant brake system consists of 2 fly wheel brakes
• • brake drums are made of steel for high resistance
• • equipped with a handwheel made of durable plastic for easy and save operation even in hard conditions and under a full load

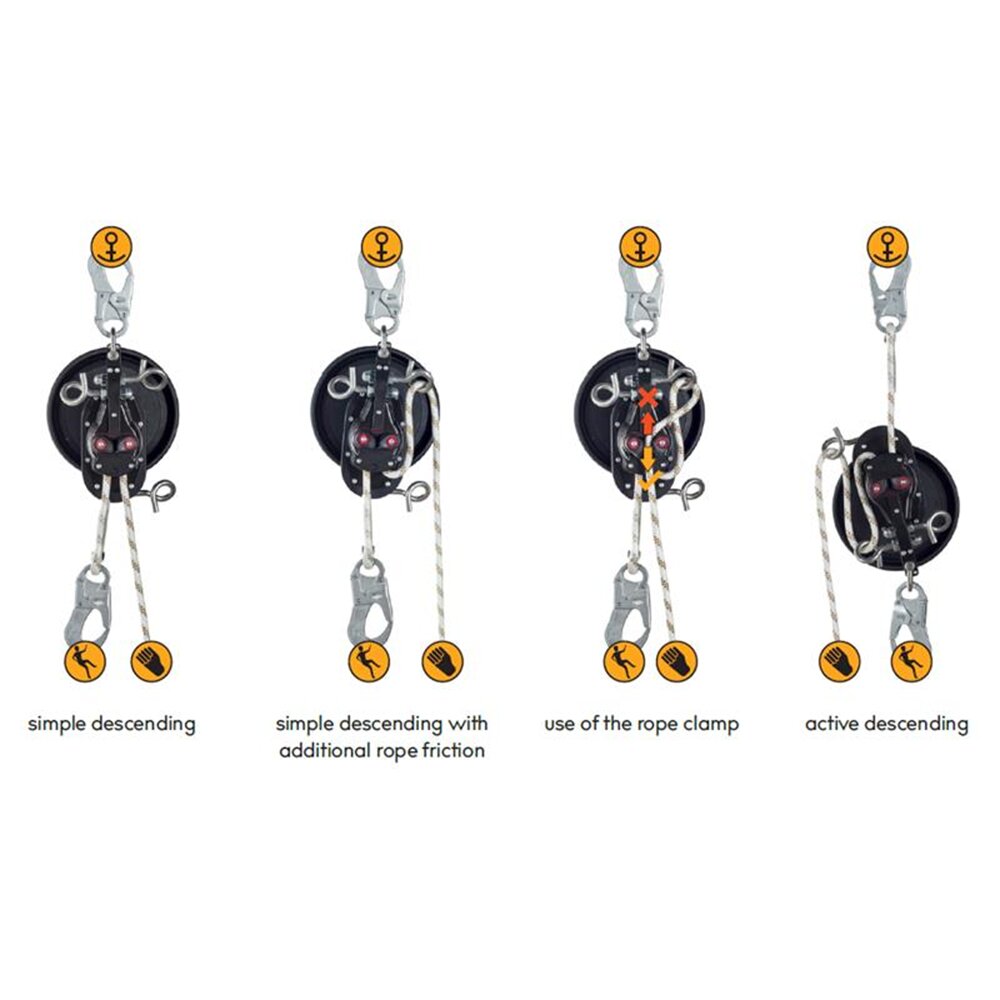

• • three stainless steel eyebolts ensure smooth descend speed control and multiple operation modes

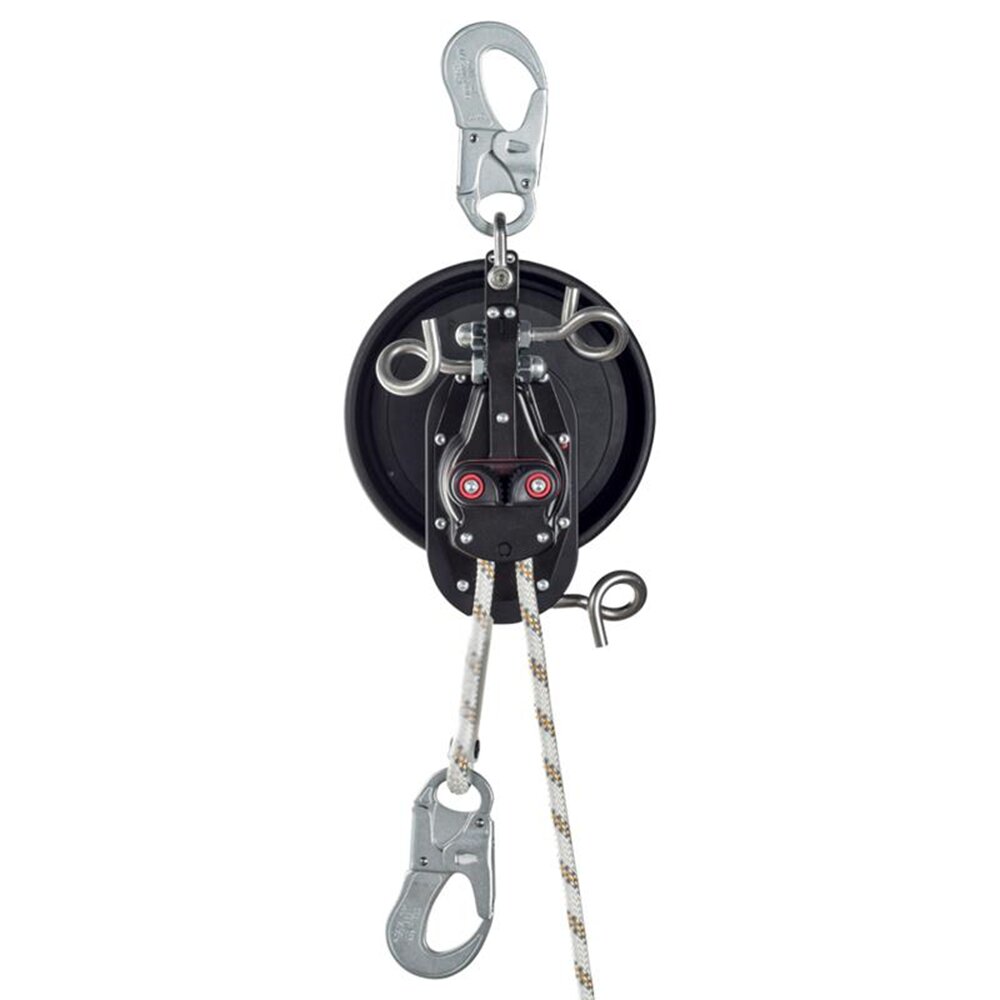

• • back side rope clamp facilitates lifting operation
• • to make the lifting easier the device is equipped with a hexagon adapter for accu-drill connection
• • attachment point is equipped with a steel double trigger automatic locking connector with a gate opening of 21 mm for versatile and easy hanging
• • static polyamide kernmantle rope (acc. to EN 1891-A, ø 9.6 mm) can be up to 300 m long
• • both ends of the rope are equipped with a stitched eye and a steel double trigger automatic locking connector with a gate opening of 21 mm
• • for a storage and transport we recommend a shock and waterproof plastic PROTECTIVE CASE in two sizes with a volume of 17 and 46 litres or a storage RESCUE BAG with a volume of 30 litres
• • when the device is stored in a sealed protective case an annual inspection is easier without the necessity of dismantling this device
• • learn more about the EvaQ HUB device

Specifications

Certification: CE 0511,EN 1496:2007-B, EN 341:2011-1A
