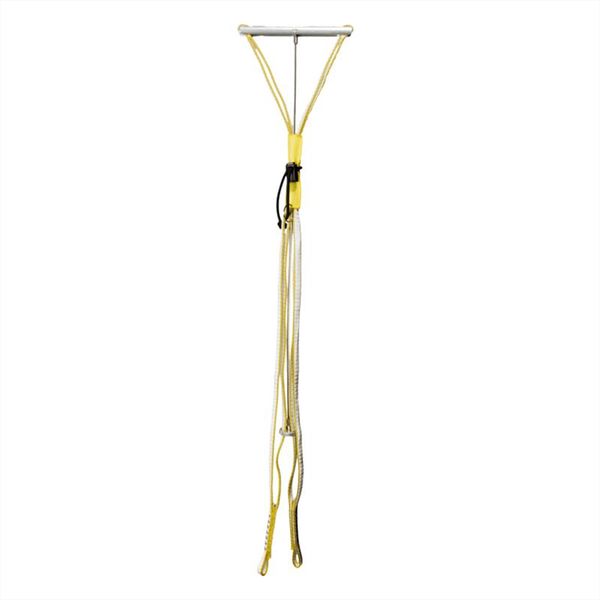

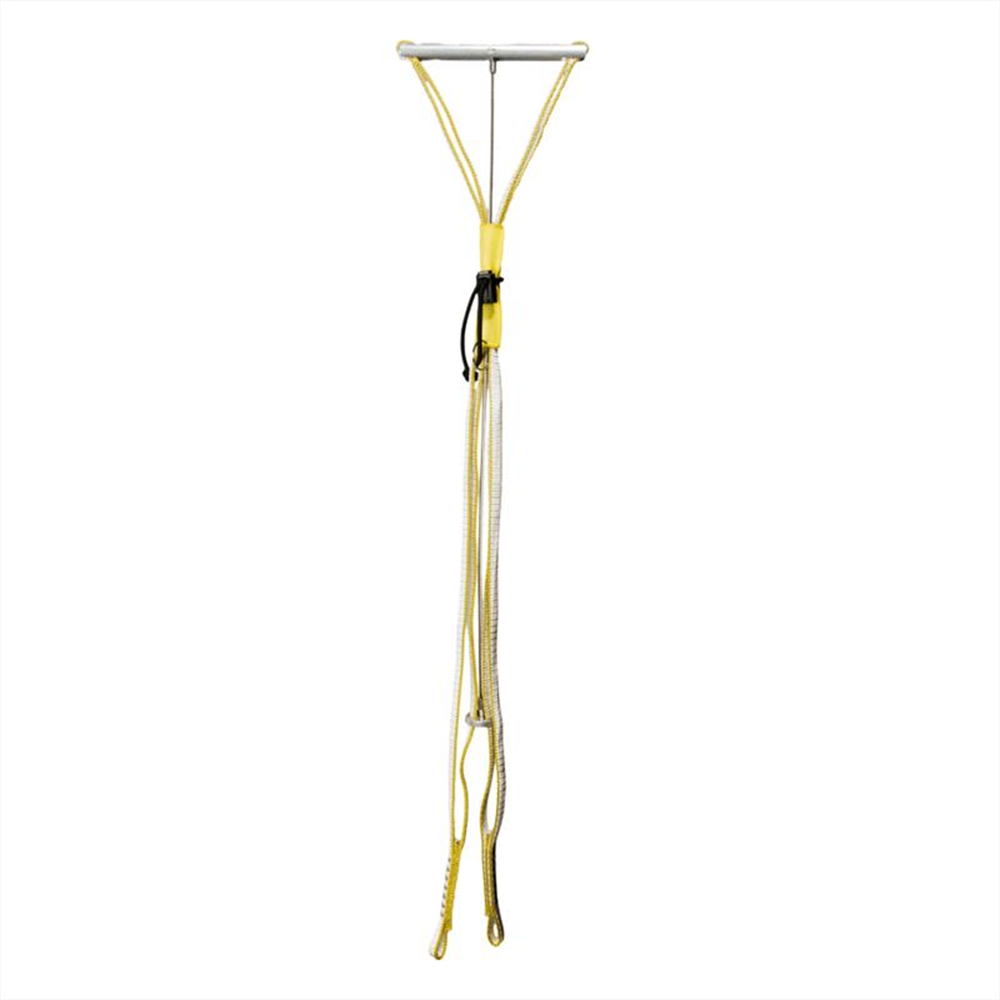

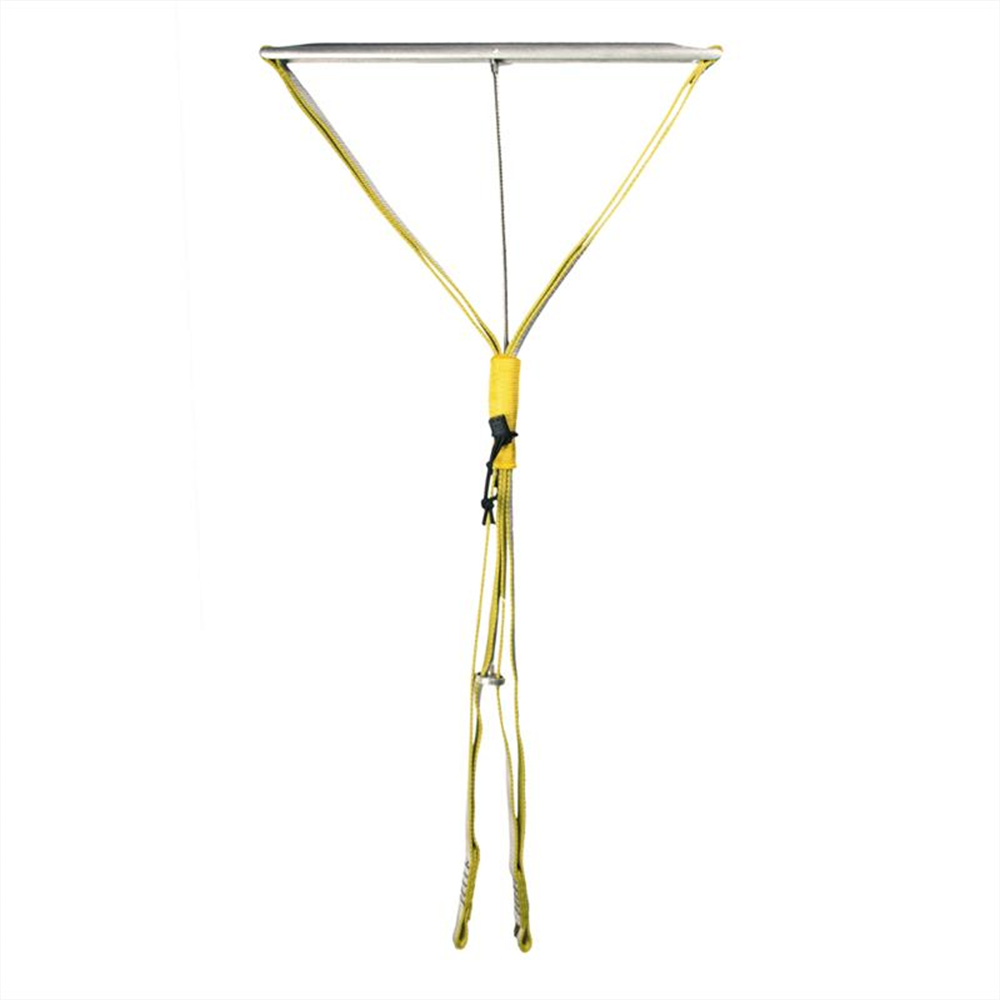

SNAKE BRACE

Anchor point for through holes, designed to function as a link between the structure and the fall arrest, work positioning, rope access or rescue systems.

• • intended for through holes whose minimum and maximum diameter corresponds to the type of Snake Brace in relation to the actual thickness of the current structure
• • the opening need not be entirely regular but the minimum diameter must be flat; there must be a minimum space for installation behind the hole
• • intended for a single user
• • the maximum strength can be used only if the structure in which the anchor hole is located can withstand the load in all directions
• • the minimum strength of the construction should be designed according to EN 795 (if not in accordance with EN 795, the load bearing capacity may be reduced)
• • Snake Brace can be loaded in any direction only if also allowed by the construction in which is anchored
• • can be used only with compatible connectors with locking mechanisms according to EN 362
•



  Type	Length	Code
  S   300	300 mm	W2018Y030
  S   600	600 mm	W2018A060
  S   900	900 mm	W2018R090
  S 1200	1200 mm	W2018B120
  M   300	300 mm	W2019Y030
  M   600	600 mm	W2019A060
  M   900	900 mm	W2019R090
  M 1200	1200 mm	W2019B120

    1019,    EN 795B
