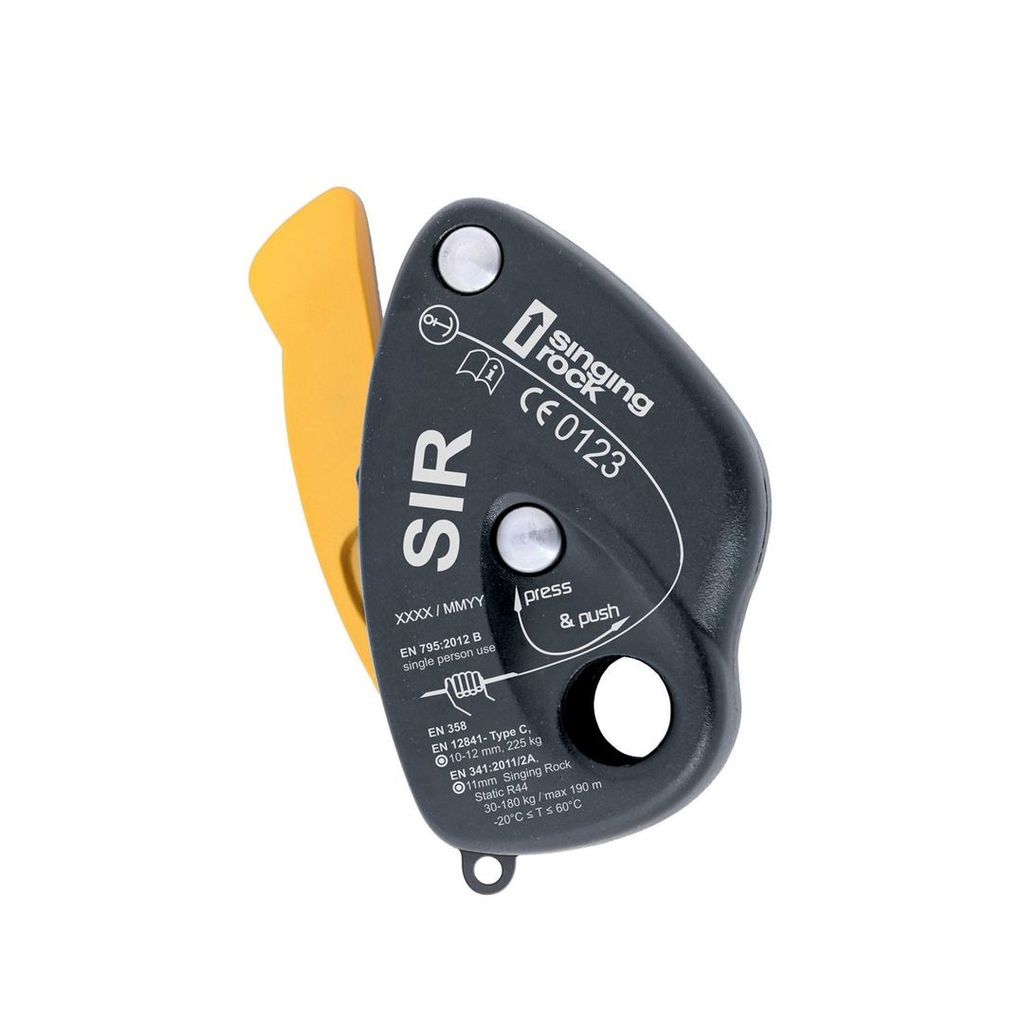

SIR

Robust multipurpose device for use in industrial rope access

• • its functionality spans the range from rope descender and abseiling device through semiautomatic belay and fall-arrest device to work positioning device for use on roofs and edges
• • unimpeded movement of the cam
• • by pulling onto the working end of the rope the cam engages and jams the rope
• • by pulling the lever the cam gradually releases the rope
• • if the lever is pulled down to its terminal position the double-stop function is triggered which blocks the rope again
• • spring loaded pin for impeded swinging of the cam
• • easy and intuitive installation of the device onto the rope (watch the pictograms and read the instruction of use)
• • no hidden mechanisms for easy inspection
• • metal lever under all industrial conditions tested for 225 kg according to EN 12841 (rope access)


• • EN 12841-C: max. load 225 kg, with static rope 10-12 mm
• • EN 341-A: load range 30-180 kg (max. descent distance 190 m), with SINGING ROCK 11 mm static rope STATIC R44 11.0

    0123    EN 341-A    EN 12841-C
