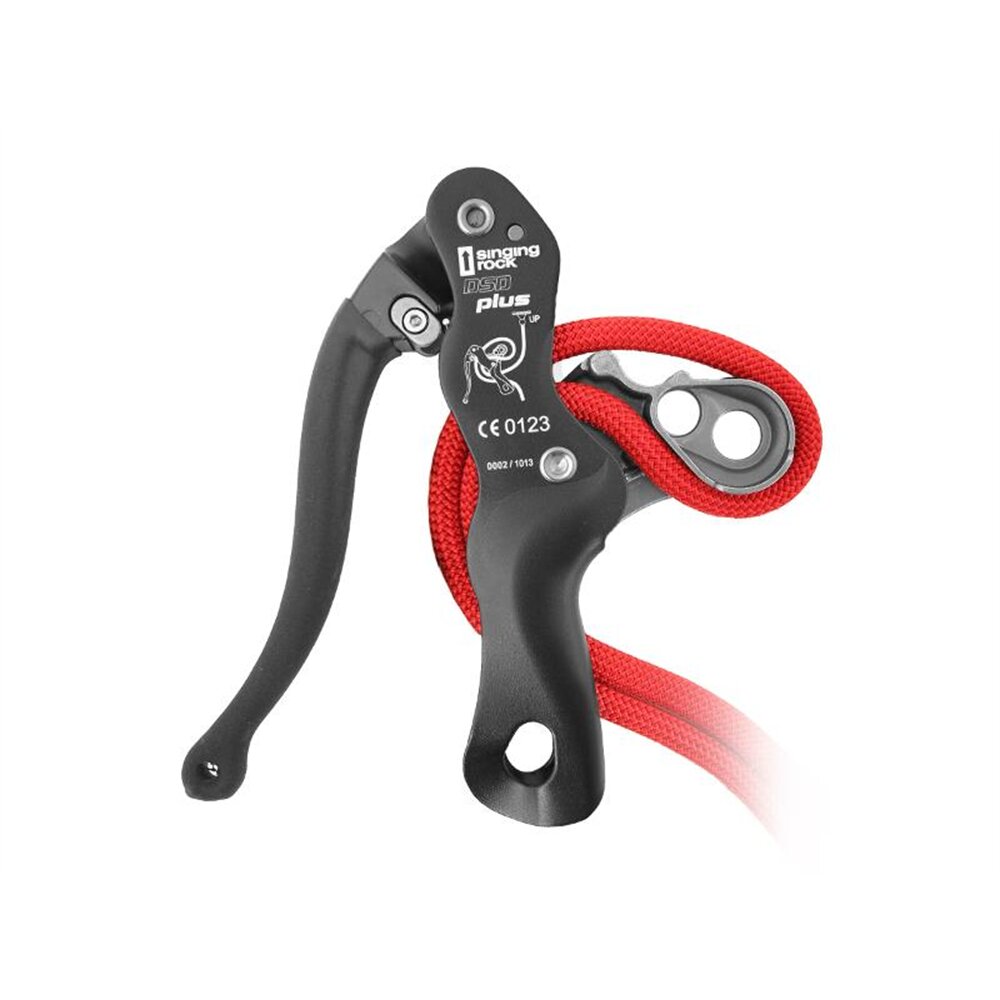

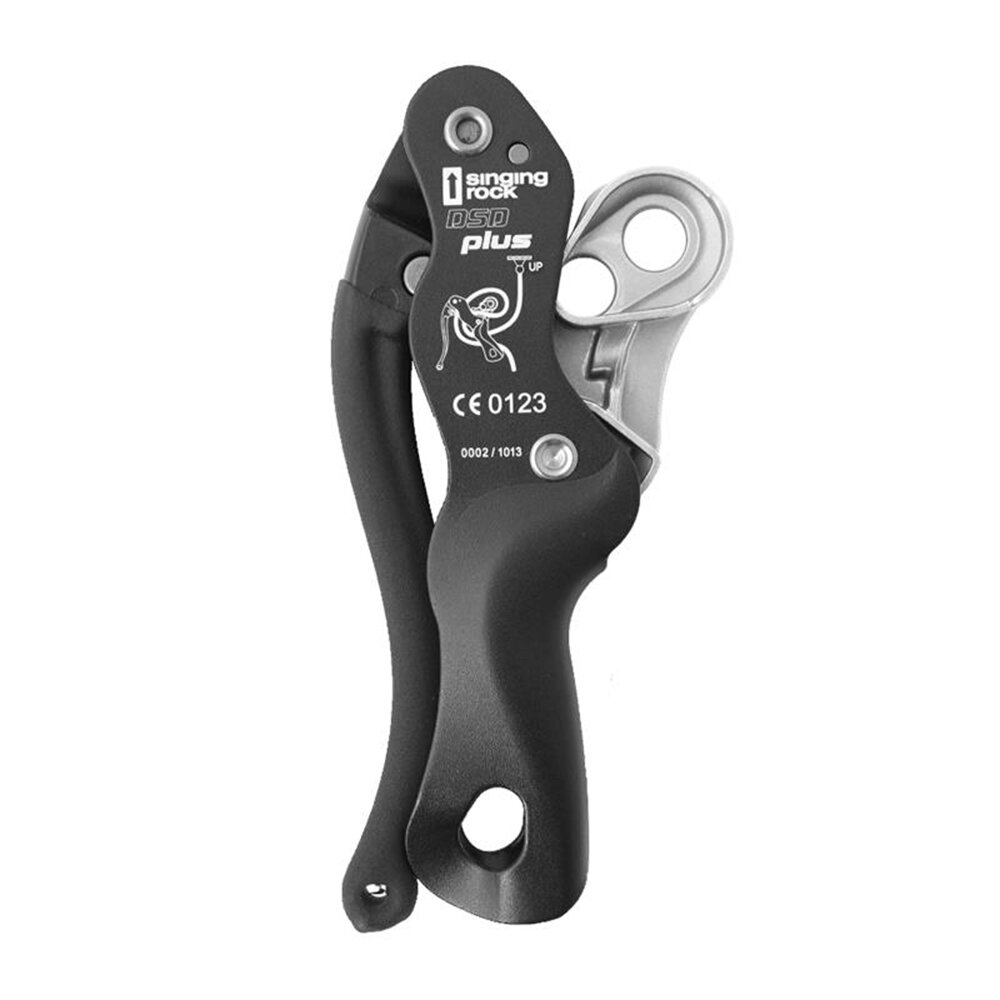

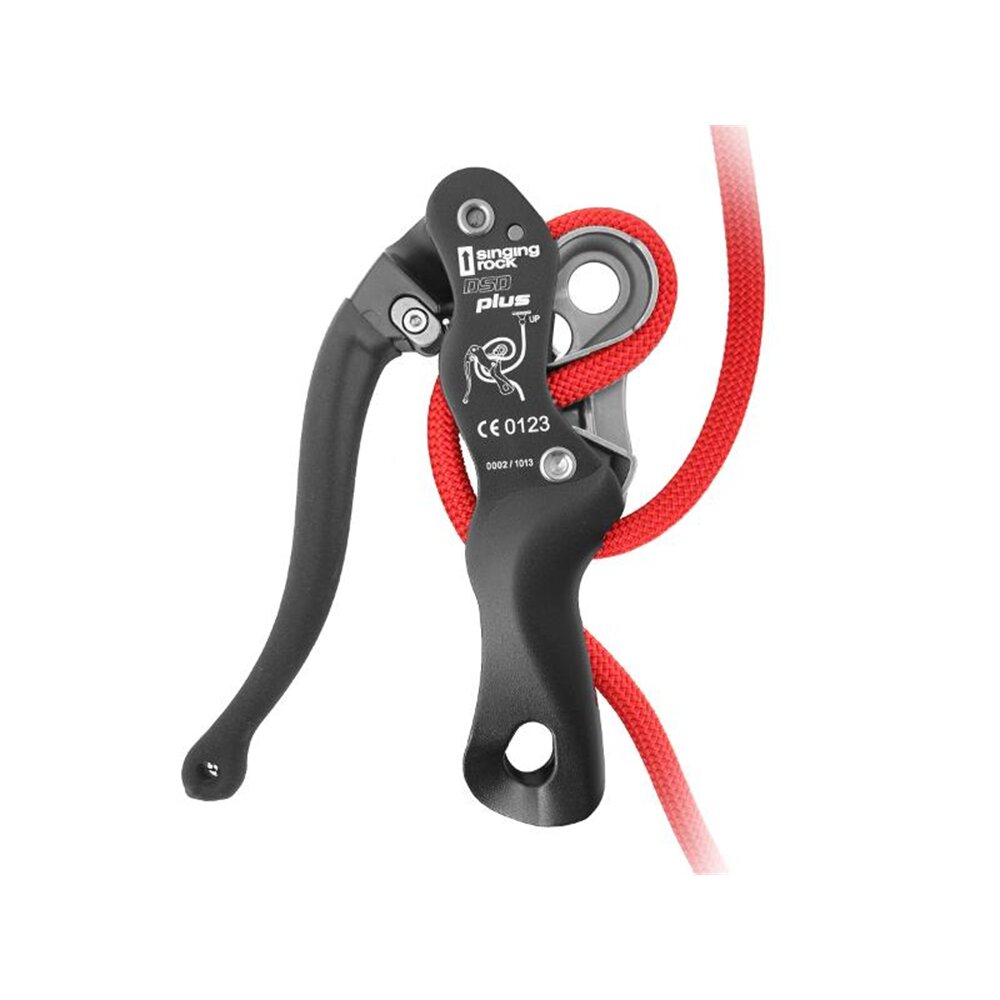

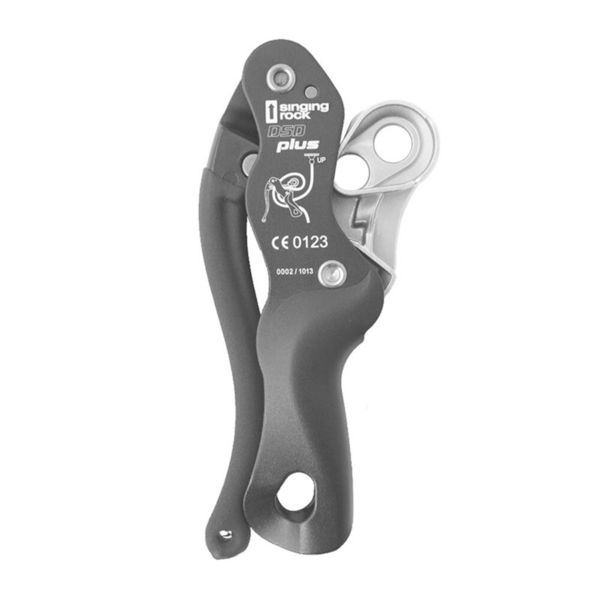

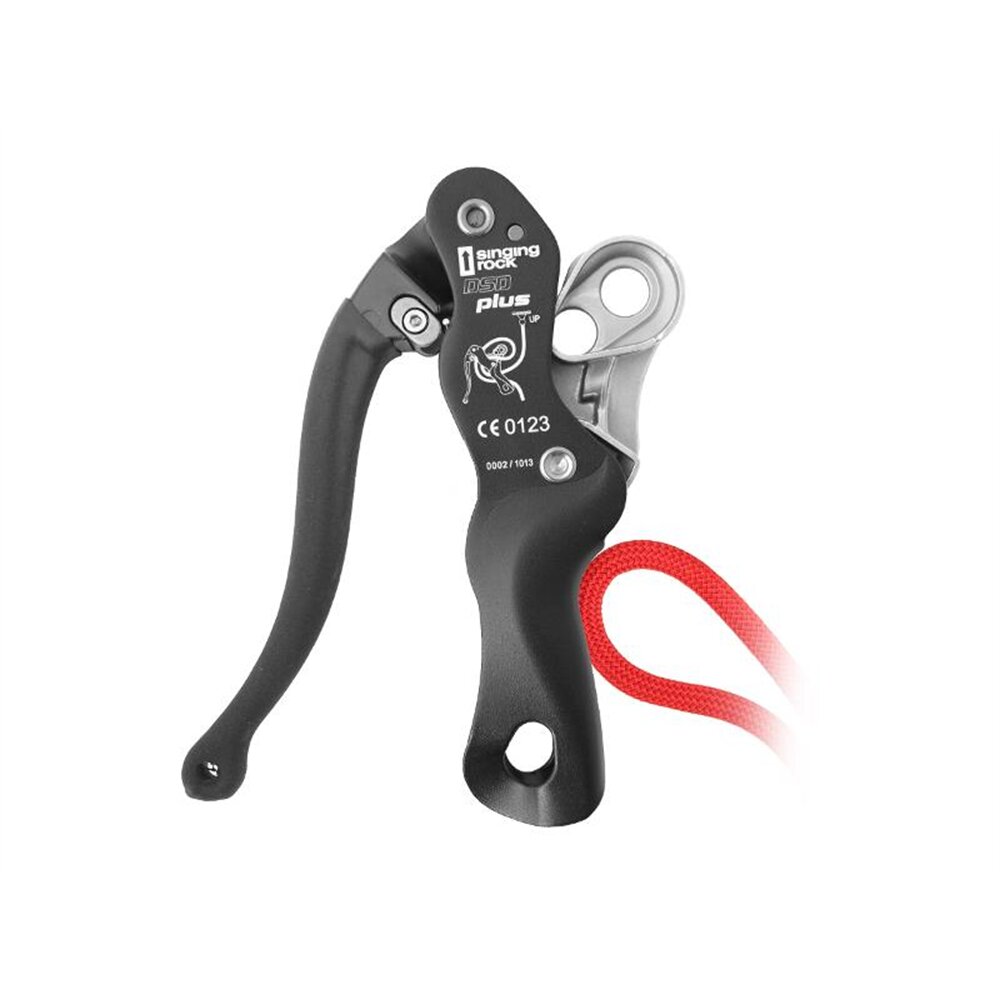

Double Stop Plus

Manually operated descender device with double auto-locking system.

• • the descender doesn’t have movable flanges; this makes it a robust and mistake-resilient device (quick insertion and release, no need to unclip it for rope insertion)
• • new cam tested for higher loads – enhanced braking in both stop positions
• • unique way of rope insertion; diminished possibility of incorrect insertion of the rope; even incorrect insertions will not result in a fall as the rope is blocked

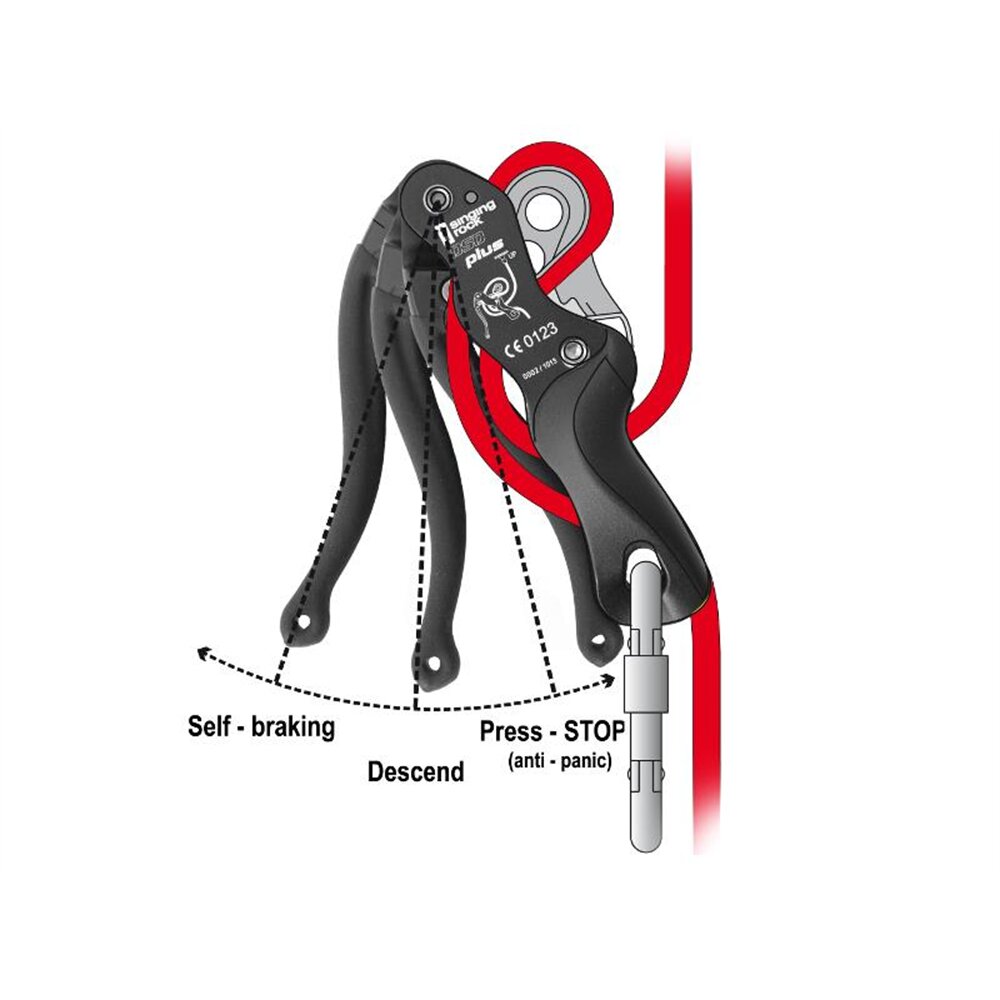

• • sensitive and longer handle enables smooth descent without harmful rope twisting, gentle and progressive braking (enhanced press stop braking mode)
• • rubberized handle provides pleasant feeling, non slip and thermal insulation
• • ergonomically improved curved edges and longer flanges provide the user with a comfortable grip with the handle
• • integrated wear indicator
• • high strength plain bearing added to the pivoting cam
• • all parts in contact with the rope are made of stainless steel (it ensures minimum possible wear)
• • reduced force required on the handle

• • breaking loads in excess of 22 kN
• • increased maximum rated load to 200 kg
• • reduced slippage of the rope to 600 daN
• • for use with static ropes with diameter 9 – 12 mm

Load limits:

• • diameter of rope 9 mm ....................... maximum rated load 130 kg
• • diameter of rope 10 – 12 mm ............. maximum rated load 200 kg

Specifications
