Ikar PLW

A4064XX30

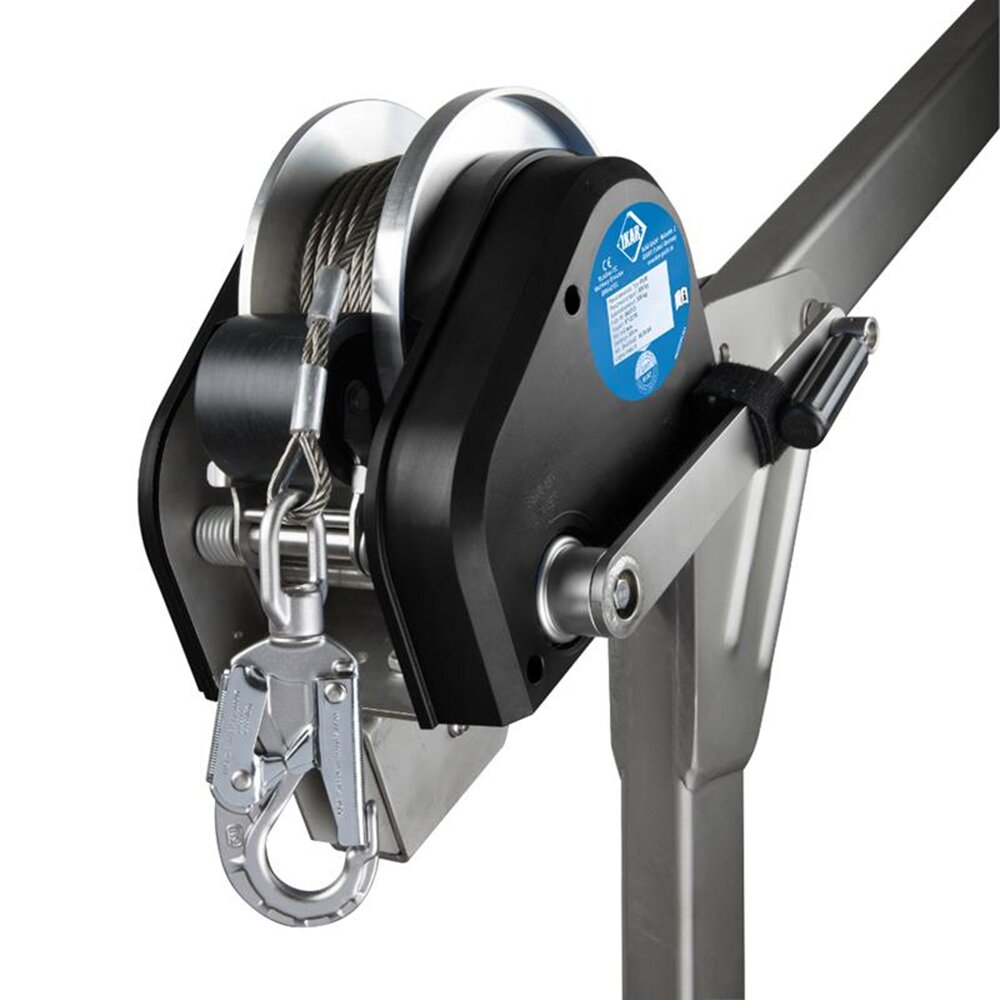

Ikar PLW

Hand crank winch for easy and jerk-free lifting and lowering of persons and loads according to Directive 2006/42/EG with 30 m stainless steel rope of Ø 6mm (min. breaking load 18.76 kN). SWL is 300 kg.

Winch can be mounted using certified consoles to IKAR DB-A3 Tripod and IKAR AASS-1 Cantilever Arm

Specifications

Weight	18.5 kg
Size	230 x 336 x 200 mm (length x width x height)
Material	stainless steel 1.4571 (V4A), PA
Length	30 m
Working load	max. 300 kg

Certification: CE, EN 1808

AUD 0.00

Go back
